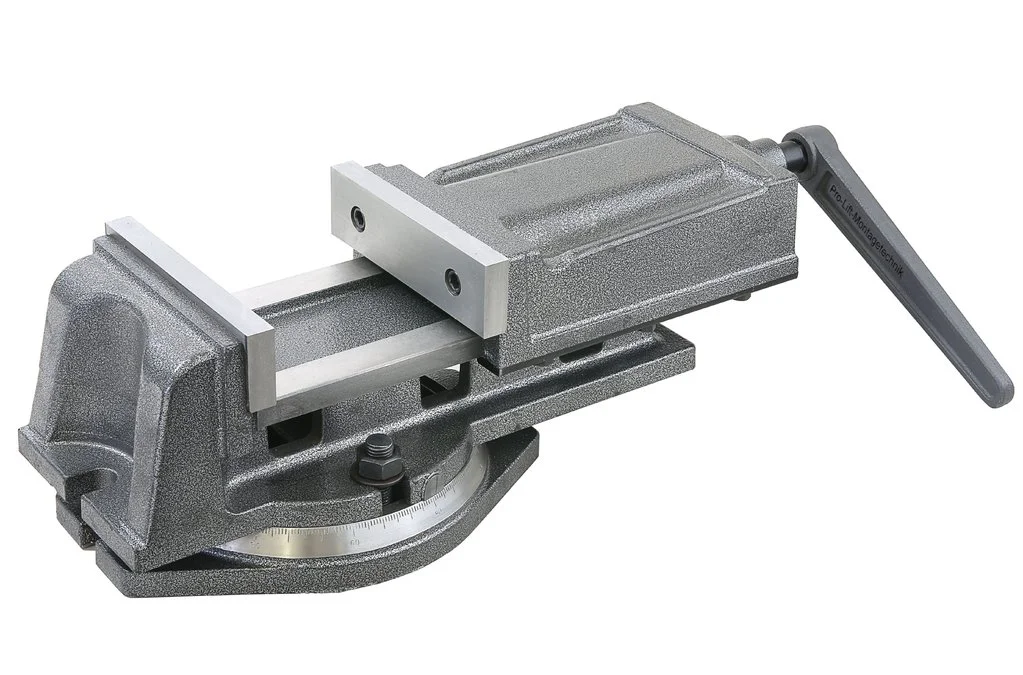

Machine vice 160mm, 360° rotatable, MVQ160J, 02152

Description

Precision machine vice, 160 mm, 360° rotatable, MVQ160J – 02152

Machine vice for box column drills or milling operations

Turning plate with accurate scaling

Rotatable by 360°, can be fixed in every position

Parallel jaw guiding

Covered spindle drive

Colour: hammertone black

Variant possibilities to fix to a work bench

Technical data:

Jaw width:                          160 mm

Jaw height:                           45 mm

Clamping depth:                   54 mm

Jaw opening width:               130 mm

Crank length:                        230 mm

Total length:                          410 mm (closed)

Total width:                           220 mm

Total height:                          160 mm

Height without slewing ring:  123 mm

Distance of the mounting slot under the slewing ring from 225 mm up to 273 mm

Weight:                                     28 kg
Shipping weight:                       30 kg
